TAB Indian Folsom Prison Series Handlebars

TAB Indian Folsom Prison Series Handlebars

Handlebar Finish
Handlebar Height

This is a non-inventory item and will need 7-14 days for processing.

Indian Folsom Prison Series Handlebars
See below for specs compared to the stock handlebar.

  • 1 design compatible with Challengers, Pursuits and 18-up Chieftains and Roadmasters.
  • The Interior has been smoothed out to lessen the likelihood of wire snags and damage.
  • The 1.5" fatties provide plenty of space for all those wires.
  • We allocate 5% of our sales to support veteran organizations that are committed to transforming the lives of veterans.

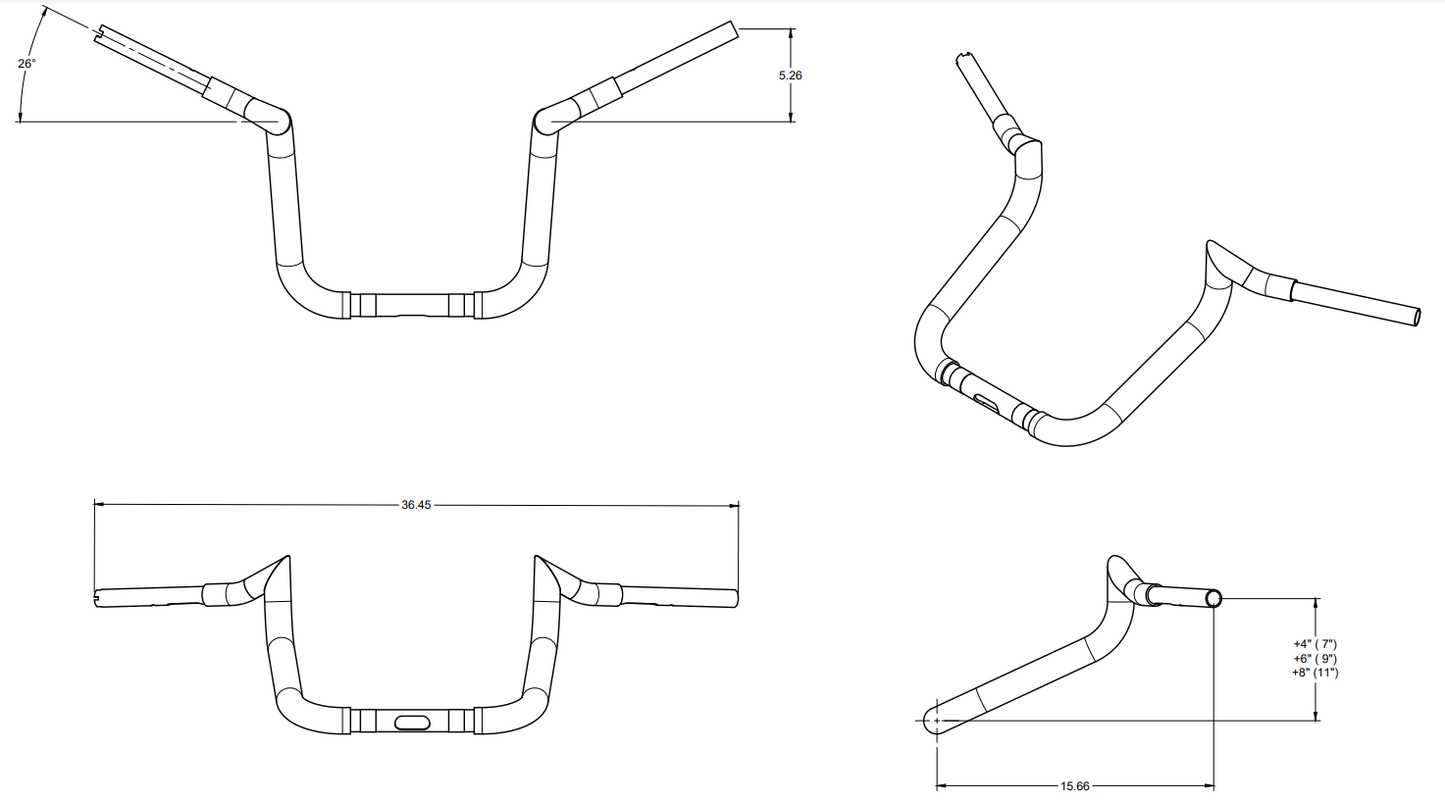

Handlebar Specs:

Bar*
Height** Width Pullback Sweep Clutch, Brake, Wire Req
Stock
3" 33.25" 15.5"
Stock
+4 7" 36.5" 15.5" 26° Stock
+6 9" 36.5" 15.5" 26° Stock
+8 11" 36.5" 15.5" 26° Stock
RR +4*** 7.75" 36.75" 17.5" 26° Stock

*The bar designation (+4, +6, +8) is how much higher the grips are than stock.
**The height is measured with the bars installed at 25°.
***RR +4 is our reduced reach bar which has 2 more inches of pullback if you want the bars closer. They can be found here.



Height

  • The vertical distance between the centerline of the base bar to the centerline of the grip

*Some manufacturers designate the height of the bar from the highest point of the peek. Ours is measured to the grip.

Width

  • The distance from the end of one grip to the end of the other.


Pullback

  • The horizontal distance between the centerline of the base bar to the end of the grip.


Sweep

  • The degree of angle between the base bar and the grip.
